Summary
The Android Application Static Analysis module introduces essential techniques for analyzing Android apps without executing them. This module, which follows Android Fundamentals, guides beginners through the process of examining Android application code and identifying various common security issues. Students will learn how to decompile applications, understand their architecture, and identify vulnerabilities to gain a deeper understanding of how such risks can eventually be mitigated.
The topics covered include:
- Disassembling APK files to understand their contents.
- Analyzing various types of applications to identify vulnerabilities within their source code.
- Analyzing obfuscated code and applying deobfuscation techniques.
- Examining native libraries for potential security issues.
- Modifying applications through patching to alter their intended behavior.
This module is broken down into sections with accompanying hands-on exercises to practice each of the tactics and techniques we cover. As you work through the module, you will see example commands and command output for the various topics introduced. It is worth reproducing as many of these examples as possible to reinforce further the concepts introduced in each section. You can do this in the target host provided in the interactive sections or your own virtual machine.
You can start and stop the module at any time and pick up where you left off. There is no time limit or "grading," but you must complete all of the exercises and the skills assessment to receive the maximum number of cubes and have this module marked as complete in any paths you have chosen.
The module is classified as "Medium" but assumes a working knowledge of the Linux command line and an understanding of information security fundamentals.
Completing the modules listed below is sufficient preparation for successfully completing this module:
- Android Fundamentals
Introduction
Static analysis is a technique used to evaluate the security of an application by examining its source code without executing it. In the context of Android applications, static analysis helps identify potential vulnerabilities, coding errors, and violations of secure coding practices by analyzing APK contents, Smali code, or decompiled Java code. It is commonly used as part of a broader security auditing process to detect issues early in the development or assessment lifecycle.
Benefits of Static Analysis
| Benefit | Description |
|---|---|
Early Detection |
Static analysis can be performed in the early stages of development, even before the application is fully functional. This allows for the early detection of issues, making them easier and less costly to address. |
Complete Coverage |
Unlike dynamic analysis, which only tests the parts of the application that are executed during the test run, static analysis can cover the entire codebase, including paths that are rarely executed. |
Security Vulnerability Detection |
Static analysis tools can detect a wide range of security vulnerabilities, such as SQL injection, buffer overflow, and insecure permissions. |
How it Works
Static analysis tools parse an application's code and evaluate it against a set of predefined rules or patterns to identify potential issues. These tools use techniques such as data flow analysis, control flow analysis, and semantic analysis to understand the behavior of the code. Static analysis for Android applications often involves examining the Java source code, compiled DEX (Dalvik Executable) files, native libraries, and configuration files like the Android Manifest, which contains essential information about the app—such as its permissions and declared components.
Types of Vulnerabilities that Static Analysis Can Detect
| Type | Description |
|---|---|
Insecure Storage |
Data stored in locations that other apps or users can access. |
Hard-Coded Sensitive Information |
Sensitive information such as passwords and API keys embedded directly into the code. |
Insecure Communication |
Unencrypted or poorly encrypted communication that can be intercepted and read. |
Insufficient Cryptography |
The use of weak or deprecated encryption algorithms. |
Insecure Permissions |
Requesting more permissions than necessary, giving the app access to sensitive data. |
APK Extraction
The most common way to install Android applications on a device is through app stores, which handle both the download and installation processes automatically. However, for static analysis purposes, we need direct access to the app's APK file—not just a functional installation. In the following paragraphs, we'll explore three types of app stores and explain how to extract APK files for analysis, rather than simply installing the applications on a device.
Google Play Store
The majority of Android applications are distributed through the Google Play Store, the official app store developed by Google. While it allows users to install apps directly onto their devices, it does not provide access to the raw APK files needed for static analysis.
Manufacturer App Stores
Manufacturers that ship devices with customized versions of Android may not be licensed to include the Google Play Store by default. As a result, they often offer their own app stores as alternatives. Examples of such stores include:
| App Store |
|---|
Samsung Galaxy Store |
Amazon Appstore |
Huawei AppGallery |
Xiaomi Mi GetApps |
OPPO App Market |
VIVO App Store |
Third-Party App Stores
Third-party app stores serve as alternative sources for downloading Android applications and are not bundled or pre-installed on most devices. These platforms often allow users to download APK files directly, enabling manual installation and analysis. They can also provide access to older app versions or apps that are restricted or not available on the Google Play Store. Some well-known third-party app stores include:
| App Store |
|---|
Amazon Appstore |
APKMirror |
APKPure |
APKCombo |
Aptoide |
F-Droid |

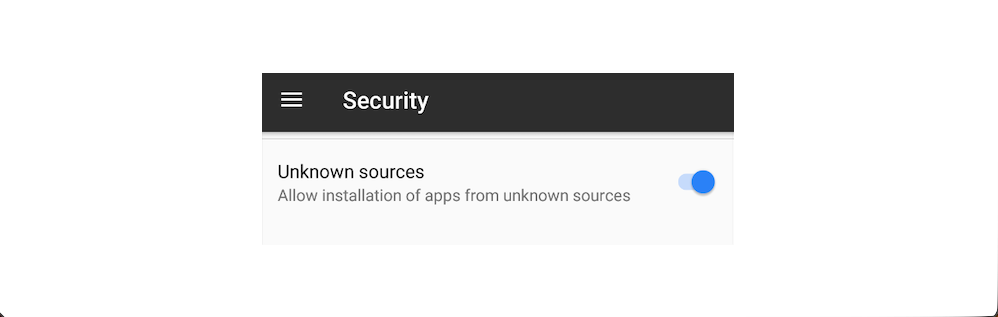

Installing Apps from Third-Party App Stores requires the Unknown Sources option to be enabled on the device. In Android versions older than 7.1 (Nougat), this can be done by navigating to Settings -> Security -> Unknown sources.

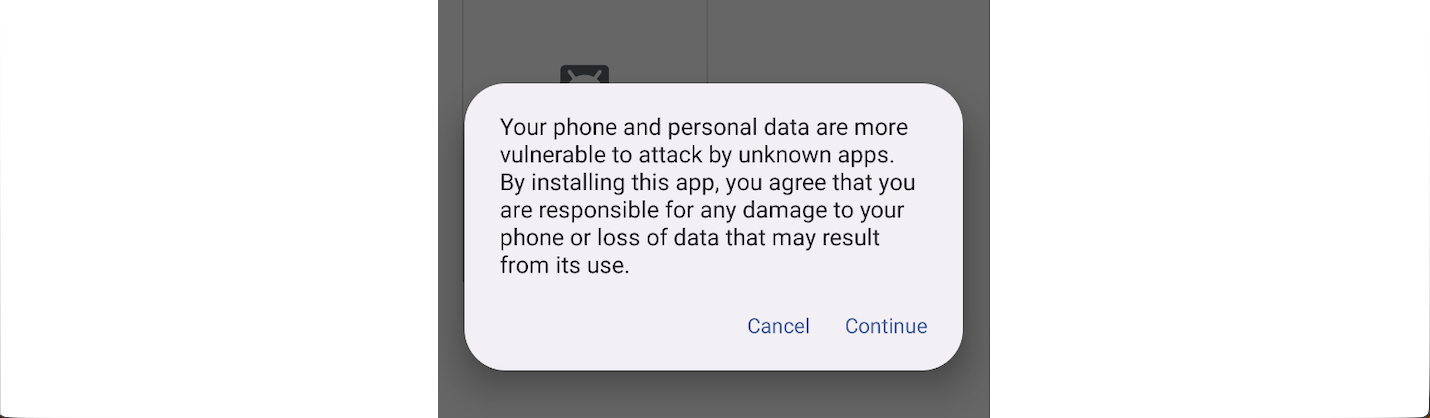

In Android version 8.0 (Oreo), when we tap an APK file to install it, a dialog box appears stating that the current settings do not allow installation from this source. From the dialog, we can open the relevant security settings and toggle the switch to allow installations from that particular source.
As we mentioned earlier, in order to start with application static analysis, we need to have the APK file. Let's take a look at three different ways to extract the APK file from an app.
Finding APK Online
In this approach, we will find and download the APK file from Third-Party App Stores. Let's navigate to APKCombo and search for the application we want to analyze. Let’s search for the Twitter Lite app.

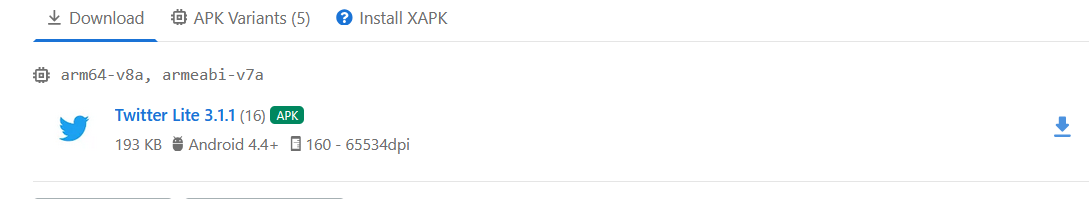

Select the first result, and click the green Download APK button.
Now, click on the Twitter Lite icon to download the APK file.
That's it. The Twitter Lite APK has been downloaded successfully. If you’re using the host machine to download the file, you can install it on the Android device via ADB using the following command:
[!bash!]$ adb install TwitterLite.apk
If you download the APK directly from the device (e.g., using a mobile browser), you’ll find it in the Downloads folder via the file manager. Simply tap the file to install it.
Extracting the APK using Third-Party Tools
Another method for obtaining APK files is by using third-party tools designed for this purpose. One such tool is APK Export, an Android application that automatically extracts the APK file of any app installed on the device and saves it locally. APK Export can be downloaded from APKCombo and installed via ADB as demonstrated earlier.

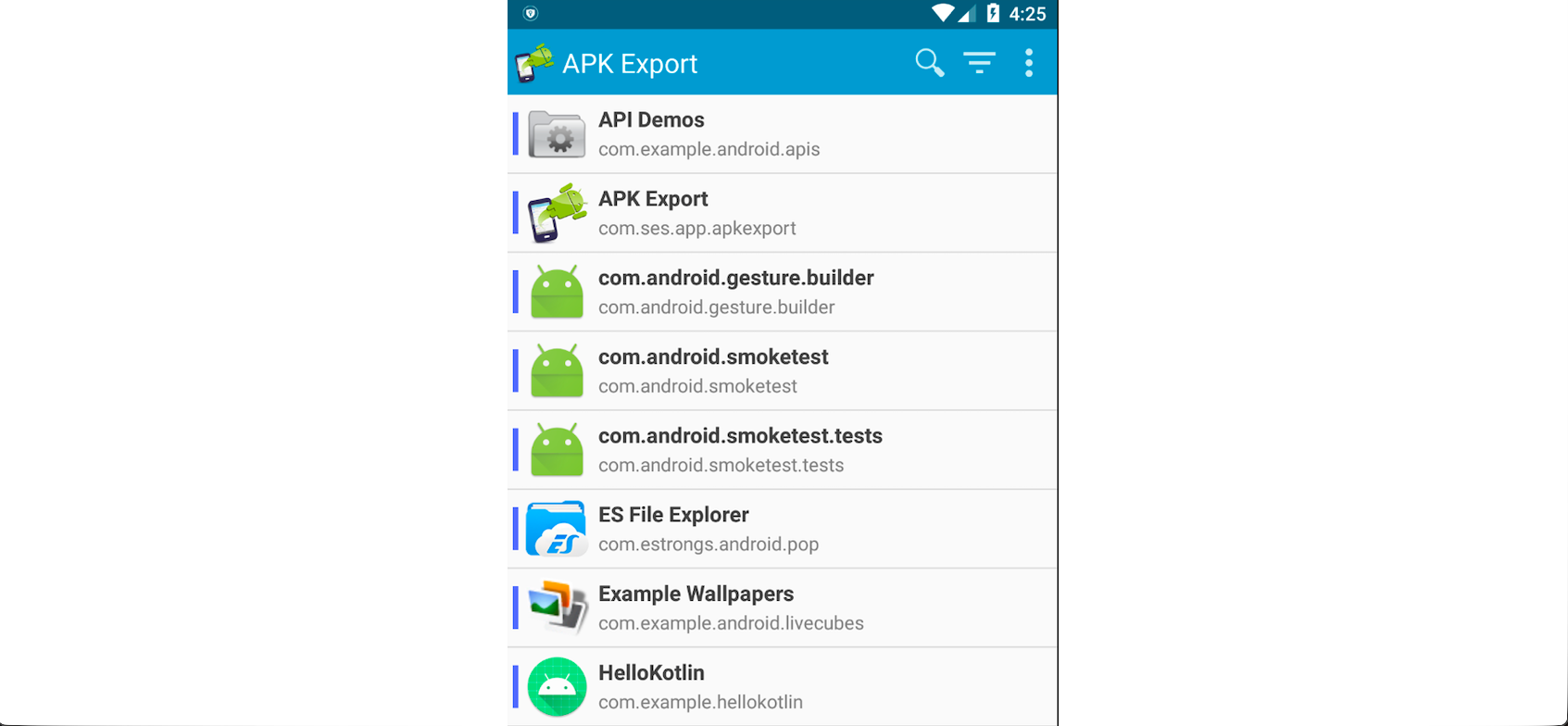

Once installed, launch the app and navigate to the installed application you want to extract.
Let's try extracting the APK file of the app HelloKotlin. Tap on the app name, then tap the disk icon in the bottom-right corner to save the APK.
The exported APK will appear in the Downloads folder, and you can install it by tapping on the file.
Extracting The APK From The Device
A more manual approach to APK extraction involves retrieving the APK file of an already installed app directly from the device. APKs are typically located in the directory /data/app/<package-name>-1/base.apk. For example, if the package name is com.example.myapp, the path would likely be /data/app/com.example.myapp-1/base.apk.
Access to the /data/app/ directory is restricted for non-rooted users, which makes it difficult to explore or guess full package paths. However, if you already know the package name, you can locate the exact path using ADB commands.
Before proceeding, make sure you've completed the steps in the Android Fundamentals module. If you're using an Android Virtual Device (AVD), refer to the Android Emulators section for guidance.
[!bash!]$ adb shell pm path com.example.myapp
package:/data/app/com.example.myapp-1/base.apk
If you don’t know the exact package name of the app, the following command will usually help, as the app name is often part of the package name:
[!bash!]$ adb shell pm list packages | grep myapp
com.example.myapp
Once you've identified the correct package, you can pull the base.apk file from the device to your local machine using the following command:
[!bash!]$ adb pull /data/app/com.example.myapp-1/base.apk .
/data/app/com.example.myapp-1/base.apk: 1 file pulled, 0 skipped. 27.3 MB/s (113799083 bytes in 3.969s)
